Price ₹
36,00,000.00

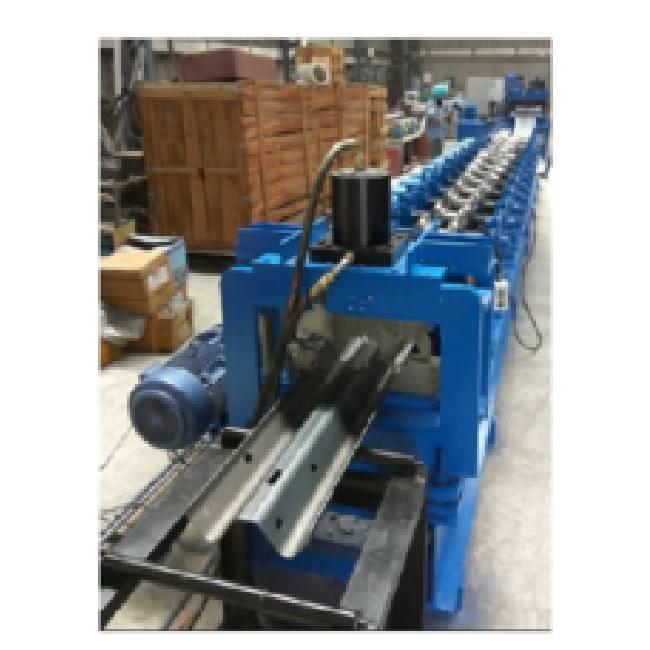

| Model | Crash Barrier Forming Machine - 1.6–3.2 mm, 16–22 Stations |
| Others: | |
| Applications | Highway Guardrails, Crash Barriers |
| Cutting Type | Hydraulic Cutting |
| Hydraulic Power Pack Motor | 30 KW |
| Main Motor Power | 18.5 KW × 2 PCS |
| Material Thickness | 1.6-3.2 mm |
| Material | Galvanized Steel, Hot Rolled Steel, Black Oxide Steel |
| Number of Forming Stations | 16-22 stations |
| Production Line Components | Decoiler ? Leveling ? Punching ? Roll Forming ? Cutting ? Stacking System |
| Voltage | 415 - 440 V |
| Phase | Three Phase |
Price ₹
20,00,000.00
| Model | Strut Channel Roll Forming Machine |
| Others: | |
| Material | Cold Rolled Steel, Galvanized Steel, Corten-A Steel |
| Material Thickness | 2.0-3.2 mm |
| Number of Forming Stations | 15-22 stations |
| Voltage | 415 - 440 V |
| Applications | Highway Guardrails, Crash Barriers |
| Control System | PLC Control (Panasonic/Siemens) |
| Cutting Type | Hydraulic Cutting |
| Forming Speed | 5-12 m/min |
| Hydraulic Power Pack Motor | 22-30 KW |
| Main Motor Power | 18.5 KW × 2 PCS |
| Phase | Three Phase |
Price ₹
38,00,000.00

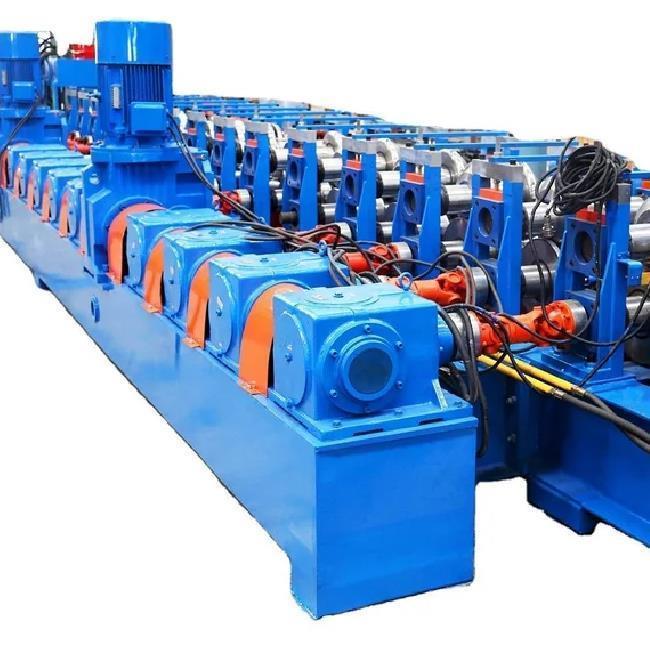

| Model | Guardrail Roll Forming Machine - 3–25 m/min |
| Others: | |
| Number of Forming Stations | 16-22 stations |
| Power | 18.5 KW × 2 PCS |
| Production Line Components | Decoiler ? Leveling ? Servo Feeding ? Punching ? Roll Forming ? Cutting ? Output Table |
| Roller Material | GCr15, hardened steel (HRC56-65) |
| Usage/Application | Industrial |
| Voltage | 220V-440V, customizable |
| Phase | Three Phase |
| Automation Grade | Fully Automatic |
| Control System | PLC Control |
| Cutting Type | Hydraulic Cutting |
| Forming Speed | 3-25 m/min (varies by model) |
| Material | Hot Rolled Steel, Galvanized Steel, Mild Steel |
Price ₹
38,00,000.00
| Model | Guardrail Roll Forming Machine - 2.0–5.0 mm, 12–22 Stations |
| Others: | |
| Cutting Type | Hydraulic punch and shear |
| Forming Product Width | 260 mm, 380 mm, or customizable |
| Material | Hot rolled, galvanized steel |
| Material Thickness | 2.0-5.0 mm (varies by model) |
| Motor Power | 18.5 KW × 2 PCS (main motor) |
| Number Of Forming Stations | 12-22 stations |
| Usage/Application | Highway guardrails, crash barriers |
| Voltage | Customizable (e.g., 415V, 50Hz, 3-phase) |
if you are interested, please fill the below details:
